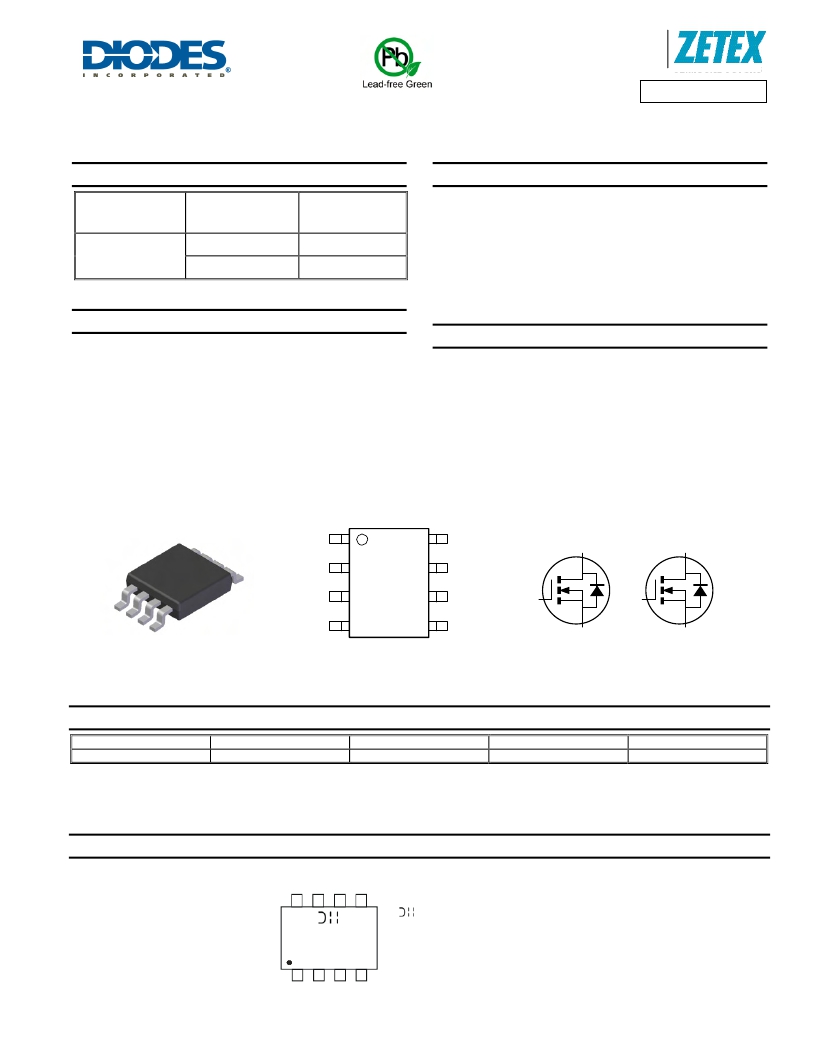

DMN4034SSD
40V DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
Features and Benefits
V (BR)DSS
40V
R DS(on)
34m Ω @ V GS = 10V
59m Ω @ V GS = 4.5V
I D
T A = 25 ° C
6.3A
4.8A
?
?
?
?
?
100% Unclamped Inductive Switch (UIS) test in production
Low on-resistance
Fast switching speed
Max Q g rated
“Green” component and RoHS compliant (Note 1)
?
Qualified to AEC-Q101 Standards for High Reliability
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
Mechanical Data
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
?
?
Case: SO-8
Case Material: Molded Plastic, “Green” Molding Compound. UL
?
?
?
?
Motor control
Backlighting
DC-DC Converters
Power management functions
?
?
?
?
Flammability Classification Rating 94V-0 (Note 1)
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See diagram below
Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
Weight: 0.074 grams (approximate)
SO-8
S1
G1
S2
G2
D1
D1
D2
D2
G1
D1
S1
G2
D2
S2
Top View
Ordering Information (Note 1)
Top View
Equivalent Circuit
Product
DMN4034SSD-13
Marking
N4034SD
Reel size (inches)
13
Tape width (mm)
12
Quantity per reel
2,500
Notes:
1. Diodes, Inc. defines “Green” products as those which are RoHS compliant and contain no halogens or antimony compounds; further information about
Diodes Inc.’s “Green” Policy can be found on our website. For packaging details, go to our website.
Marking Information
= Manufacturer’s Marking
N4034SD
N4034SD = Product Type Marking Code
YYWW = Date Code Marking
YY
WW
YY = Year (ex: 09 = 2009)
WW = Week (01 - 53)
DMN4034SSD
Document Number DS32105 Rev 2 - 2
1 of 9
www.diodes.com
January 2012
? Diodes Incorporated
